Description

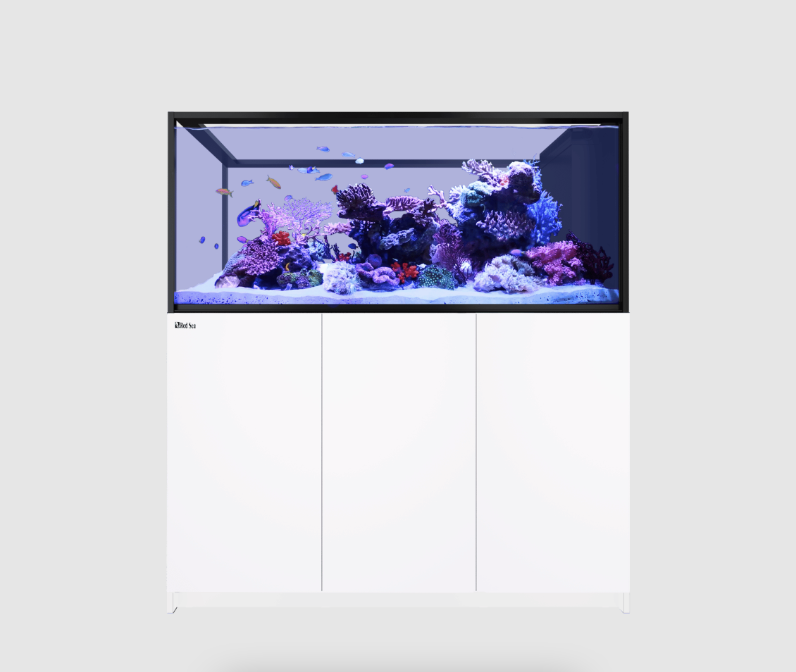

Red Sea Reefer Max G2+ Peninsula 500 Aquarium (White)
Fully equipped smart systems that provide you with everything you need for a thriving reef.
The premium REEFER MAX series features the entire REEFER G2+ range in a Plug & Play configuration that includes smart lighting, filtration, and circulation devices, so you can enjoy the full Red Sea ecosystem experience, operate every aspect via your ReefBeat App, and be at ease knowing that all the essential equipment is compatible and at the best possible price!Equipment Included
Lighting - 2 x ReefLED 160
Water circulation - 2 x ReefWave45
Main System Pump - 1x ReefRun 7000
Protein Skimmer - RSK DC 600
ReefMat 1200
ReefATO+ Kit
Slide Out Control Panel 60
Slide Out Control Panel 60
G2+ Aquarium
The REEFER Peninsula G2+ popular size models are reef-ready aquarium systems that enable hobbyists to create smaller Peninsula reef aquariums that will give any space a boost in style. These room-divider tanks allow hobbyist to marvel at the beauty of their corals from two long views, and come with a 3-year + 2 warranty and the 3-in-1 ReefATO+ system as standard.
ReefLED Lighting
The ReefLED 160S is the big brother of the ReefLED series, making corals stand out and sing in even deeper and wider tanks.
The ReefLED 160S combines 160W of REEF-SPEC & Reef-Safe LED light with a patent-pending stadium-shaped lens, creating a beautiful, homogeneous spread throughout an aquarium of 80cm / 32’’ in all three directions. Multiple units can be mounted 75 cm / 30” apart while still guaranteeing a visual uniformity of light across the length of the entire aquarium. Only two units are required for a 150cm / 6? long tank, or three units for a 225cm / 7.5? long tank. The 160S is therefore the smart choice for bigger tanks.
At the heart of the unit is a single, compact LED array, providing 160W of REEF-SPEC & Reef-Safe LED light. It includes 140W of multi-wavelength 23,000 Kelvin REEF-SPEC Blue (a proprietary blend of blue, violet and ultraviolet LEDs), together with 20W of 9,000 Kelvin White, and a separate 3W channel for moonlight. This array enables a wide range of REEF–SPEC light that will please both you and your corals.
The ReefLED 160S is also equipped with a built-in Wi-Fi that allows total control via ReefBeat smart aquarium app (which controls all Red Sea devices). The app includes pre-set lighting programs, along with additional features such as sunrise/sunset effects, lunar cycle moon light, random clouds and even an acclimation program for new installations.
160w Compact LED Array
580 PAR at the surface, 160 PAR at 50cm Depth
140w REEF-SPEC Blue, 20w 8,000K White and 3w Moonlight
Dimensions, 17.5cm x 15.5cm x 6.3cm
ReefRun Pump
The ReefRun DC return pump is run via the ReefRun Dual Controller which is sold separately as it can also operate the Reefer DC Skimmer at the same time!
Combine them into your ReefBeat eco system for more efficient reef keeping.
Be notified if your pump is running dry, disconnected or malfunctioning.
Set a customized daily schedule with varying intensities.
Run two ReefRun DC pumps with your Dual controller, and operate them as a single unit.
Dimensions - 150mm (H) x 96mm (W) x 200mm (L)
Outlet 1"
Specification
Reefer DC Skimmer
Optimal Waste Removal
The Reefer DC Skimmer features a combination of self-leveling tech, a PSK DC pump, proportionally sized venturi, a bubble diffusor and reaction body that optimizes air-water contact time.
Sensor to pump
The REEFER DC Skimmers come with a dual-action solid-state sensor that monitors foam wetness and waste level, allowing the ReefRun Dual Controller to regulate the DC Pump accordingly.
The Reefer DC Skimmer is run via the ReefRun Dual Controller as it can also operate the ReefRun DC return pump at the same time!
Combine them into your ReefBeat eco system for more efficient reef keeping.
Select the order and timing between switching devices back on after a maintenance shutdown, such as allowing a few minutes for your return pump to restore water levels in sump and aquarium before switching on the skimmer, wave pumps and dosers.
User friendly features
Precision geared valve for positive flow regulation.
Quick release pump holder for ease of maintenance
1-meter valved waste drainage hose.
3 set-up options with skim regulator facing either the left side, right side or back.
Built-in manual neck cleaner.
Specification
PSK DC-1200
Sicce pump
750/195
Air flow (Lph/Gph)
1500/265
Water flow (Lph/Gph)
25 W
Power consumption
ReefWave Pump
The combination of an advanced, smooth running and energy efficient sine-wave motor drive, with superior vibration damping mounts and dual bearings on all models, make ReefWave a nearly silent pulsing wave pump. You can control each ReefWave pump locally through its own dedicated controller or remotely via the built-in Wi-Fi that connects easily to Red Sea’s ReefBeat app.
ReefMat Filter Roller
ReefMat includes a fail-proof solid-state level sensor and an unprecedented smart drive unit that controls and monitors the exact length of fleece-mat that is used. ReefMat is Wi-Fi connected to Red Sea’s ReefBeat smart aquarium eco-system and will notify you if the fleece-mat gets torn or runs out, gives you a head’s up before it needs replacing, and even provide you with a daily usage log.
Specifications:
- Max. flow capacity: 12,000 litres per hour
- Fleece-roll width: 17cm
- Fleece-roll length: 35m
- Unit dimensions: 27 x 30 x 48 cm
- Media basket: 700ml
ReefBeat App
One interface for all of Red Seas smart devices
Easy set-up and operation
On-line monitoring and notifications
Additional app features
Peace of Mind
Timely notifications should the fleece-mat get torn, stuck or run out. In addition to the notifications the ReefMat smart-drive will automatically shut off the motor until the roll is unblocked or replaced.
End of Roll Monitor
Based on the average daily usage, ReefBeat lets you know your preferred number of days before the roll is due to end.
Performance Log
Continuously monitor performance with a detailed hourly and daily fleece-mat dispensing record for the current roll and overall stats for previous rolls.
Customized Dispensing
The length of fleece mat dispensed can be customised allowing for optimal system performance
Mounting and Installation
The ReefMat comes fully assembled, straight out of the box. For ease of operation, it is designed to hang on the front wall of the sump however it also has optional legs for a free-standing installation.
Both the Drive-unit and inlet hose can be positioned either side of the ReefMat, as best suits each installation.
Kink-resistant, corrugated (32mm/1.25" ID) inlet hose with a PVC universal connector (suitable for both metric and USA piping) are provided to easily connect the ReefMat directly to the aquarium downpipe or dedicated feed pump.
ReefATO
Exceptionally reliable and smart ATO, temperature monitor and leak detector
Smart, Safe & Quiet. The ReefATO+ is designed to maintain a stable salinity and water volume in a reef aquarium by automatically replenishing the water lost due to evaporation.
This is not just a top-up! Fully control via the ReefBeat App provides complete peace of mind with alerts via your mobile device when you are around your aquarium. Complete with an installation kit that includes tube holders, clips and non-return valves you could ever need, the ATO+ proves every last detail has been thought about, something we have come to expect from Red Sea in recent times!
In addition, the ReefATO+ provides two other critical aquarium health indicators: a fully featured online digital temperature monitor and a leak detector.
ATO+ Sensor
Slim-line, multi-input, titanium probe, solid state (EC technology) water level sensor, with a built-in digital thermometer accurate to 0.1 degrees.
ATO Pump
Quiet, variable flow, serviceable ATO pump (6-10w). Diameter 4.5cm, max flow 300lph/75 gph with a max head height of 2.5 meters.
Leak Detector
Highly Sensitive, REEF-SPEC, titanium probe leak detector for RO & saltwater. Triggers notifications via the ReefBeat App and features an audible alarm.
Smart Controller
The microprocessor monitors and reliably controls all of the components and connects them to the Reef Beat eco-system.
Slide Out Control Panel
Designed with hobbyist needs in mind, Red Sea’s new slide-out Control Panel helps you to get the most out of your cabinet space by placing your dosers, controllers and other devices in one easily accessible place.
The Control Panel is designed to fit either side of your cabinet, and is made of marine-spec laminated plywood with quick-release stainless steel soft-close sliders, allowing for easy mounting and access to all your equipment.
In keeping with the REEFER tradition, Peninsula G2+ systems enable hobbyists to customize their tanks with their preferred lighting, pumps, dosers and filtration equipment.
features:
- Dual return outlets and hydrodynamically superior piping for optimal water distribution.
- Cabinet doors that can be installed either on the left or right side, for optimal sump access.
- ReefMat-ready sump with a removable media compartment and a universal connector on the downpipe, for Plug and Play ReefMat installation.
- Ultra-clear, beveled-edge glass with increased thickness of up to 19 mm or 0.75”, with silicone protection strips on the bottom and side joins.
- New high precision valve and enlarged inlet section for easy flow regulation and quitter operation.
- Extra connectors for both metric and USA standard piping.
- Extra-fortified marine-spec plywood cabinets (removable exterior for the S-700 and S-950)
- The 3-in-1 ReefATO+ included (reliable and smart ATO + temperature monitor + leak detector).
- Standard FREE 3-year warranty
- 5-year extended warranty at great prices for extra peace of mind.
The REEFER Deluxe incorporates the all-new ReefLED lighting units with Red Sea’s custom mounting system into the REEFER reef ready systems in a convenient single package. At the heart of the ReefLED is a compact Led array that provides a reef-safe range of REEF-SPEC light through a single REEF-SPEC Blue (23,000 Kelvin) channel that consists of an optimum combination of ultraviolet, violet and blue LEDs and an 8,000 Kelvin white channel. In addition, it has a separate dedicated 3W Moonlight channel to provide the low levels of light for reef-safe nighttime viewing.The ReefLED includes a single optical-glass, hollow lens that creates a homogenous light, giving a dramatic coral coloration and a gentle shimmer throughout the aquarium.
ReefLED is controlled by Red Sea’s ReefBeat App which provides a wide range of easy to use functions such as random clouds, acclimation for new installations and a lunar cycle for the moonlights.
The custom mounting system attaches firmly onto the rear wall of the tank and can be rotated to the upright position during reefscaping or other tank maintenance.
Display tank length - 125 cm
Display tank height - 60 cm
Display tank width - 63.5 cm
Total system height - 160 cm
Total system water vol. - 519 L
Display tank water vol. - 412 L
In-cabinet sump water vol. - 106.6 L
Ultra-clear front glass - 15 mm
Ultra-clear side glass - 15 mm
Bottom glass - 15 mm
The REEFER Deluxe incorporates the all-new ReefLED lighting units with Red Sea’s custom mounting system into the REEFER reef ready systems in a convenient single package. At the heart of the ReefLED is a compact Led array that provides a reef-safe range of REEF-SPEC light through a single REEF-SPEC Blue (23,000 Kelvin) channel that consists of an optimum combination of ultraviolet, violet and blue LEDs and an 8,000 Kelvin white channel. In addition, it has a separate dedicated 3W Moonlight channel to provide the low levels of light for reef-safe nighttime viewing.The ReefLED includes a single optical-glass, hollow lens that creates a homogenous light, giving a dramatic coral coloration and a gentle shimmer throughout the aquarium.
ReefLED is controlled by Red Sea’s ReefBeat App which provides a wide range of easy to use functions such as random clouds, acclimation for new installations and a lunar cycle for the moonlights.
The custom mounting system attaches firmly onto the rear wall of the tank and can be rotated to the upright position during reefscaping or other tank maintenance.
Specification
Display tank length - 125 cm
Display tank height - 60 cm
Display tank width - 63.5 cm
Total system height - 160 cm
Total system water vol. - 519 L
Display tank water vol. - 412 L
In-cabinet sump water vol. - 106.6 L
Ultra-clear front glass - 15 mm
Ultra-clear side glass - 15 mm
Bottom glass - 15 mm
ReefLED Lighting
Meet the ReefLED 160S lights. They are Reef Safe, REEF-SPEC, extremely powerful, and enable exceptional growth and colors in even deeper and wider tanks.
The ReefLED 160S is the big brother of the ReefLED series, making corals stand out and sing in even deeper and wider tanks.
The ReefLED 160S combines 160W of REEF-SPEC & Reef-Safe LED light with a patent-pending stadium-shaped lens, creating a beautiful, homogeneous spread throughout an aquarium of 80cm / 32’’ in all three directions. Multiple units can be mounted 75 cm / 30” apart while still guaranteeing a visual uniformity of light across the length of the entire aquarium. Only two units are required for a 150cm / 6? long tank, or three units for a 225cm / 7.5? long tank. The 160S is therefore the smart choice for bigger tanks.
At the heart of the unit is a single, compact LED array, providing 160W of REEF-SPEC & Reef-Safe LED light. It includes 140W of multi-wavelength 23,000 Kelvin REEF-SPEC Blue (a proprietary blend of blue, violet and ultraviolet LEDs), together with 20W of 9,000 Kelvin White, and a separate 3W channel for moonlight. This array enables a wide range of REEF–SPEC light that will please both you and your corals.
The ReefLED 160S is also equipped with a built-in Wi-Fi that allows total control via ReefBeat smart aquarium app (which controls all Red Sea devices). The app includes pre-set lighting programs, along with additional features such as sunrise/sunset effects, lunar cycle moon light, random clouds and even an acclimation program for new installations.
Features
- REEF-SPEC light output for optimal coral growth and coloration
- Homogeneous light with a gentle shimmer
- Reef-safe dual-channel color setting plus dedicated moonlights
- ReefBeat app for easy set-up, operation, monitoring & notifications
- Anti-glare recessed lens and clip-on visor
- Tilt-switch, automatically switches off the light when tilted from horizontal
- Pat-pending stadium-shaped lens provides homogeneous light spread
- Units can be mounted up to 75cm / 30? apart for superior coverage
160w Compact LED Array
580 PAR at the surface, 160 PAR at 50cm Depth
140w REEF-SPEC Blue, 20w 8,000K White and 3w Moonlight
Dimensions, 17.5cm x 15.5cm x 6.3cm
ReefBeat app
- One interface for all of Red Sea’s smart devices.
- Easy set-up and operation.
- On-line monitoring and notifications.
ReefRun Pump
Quiet. Powerful. Smart.
The smart ReefRun DC Pumps can be set to a customized daily schedule, and come with 360-degree rotating outlets, inlet flow guides, extra-long power cables with convenient connectors next to the pump, and a 5-year warranty.The ReefRun DC return pump is run via the ReefRun Dual Controller which is sold separately as it can also operate the Reefer DC Skimmer at the same time!
Combine them into your ReefBeat eco system for more efficient reef keeping.
Be notified if your pump is running dry, disconnected or malfunctioning.
Set a customized daily schedule with varying intensities.
Run two ReefRun DC pumps with your Dual controller, and operate them as a single unit.
Connect both a ReefRun DC Pump and a REEFER DC Skimmer to your ReefRun Dual Controller.
Set your pump to operate as a wave pump for use in closed loop wave installations.Dimensions - 150mm (H) x 96mm (W) x 200mm (L)
Outlet 1"
Specification
3000 – 7000 l/h
800 – 1900 US gph
Flow MIN – MAX
5.0 m / 16.5’
Max Height
20 – 65 W
WATT800 – 1900 US gph
Flow MIN – MAX
5.0 m / 16.5’
Max Height
20 – 65 W
The ReefRun Pump comes with a 5-year manufacturer warranty.
Reefer DC Skimmer
Efficient. Quiet. Smart.
The REEFER DC Skimmers include self-leveling technology that prevents over-skimming and full cups from spilling while continuing to aerate the water.Self-Leveling.
The Self-leveling feature is activated whenever the wetness of the foam in the neck exceeds the user-adjusted “over-skim” threshold. The intensity of the pump is immediately reduced to prevent the over-skim and then gradually increased or decreased, a bit at a time, according to the foam wetness, until the preset pump intensity is reached and stable skimming is restored.Optimal Waste Removal
The Reefer DC Skimmer features a combination of self-leveling tech, a PSK DC pump, proportionally sized venturi, a bubble diffusor and reaction body that optimizes air-water contact time.
Sensor to pump
Quiet
The REEFER DC Skimmers are exceptionally quiet due to the PSK DC Pump, rubber connectors and an air intake silencer.The Reefer DC Skimmer is run via the ReefRun Dual Controller as it can also operate the ReefRun DC return pump at the same time!
Combine them into your ReefBeat eco system for more efficient reef keeping.
And use the ReefBeat
Quick-actions
Create your unique Feed scenario by switching selected pumps off or run at different intensities at different times for different durations.Quick-actions
Select the order and timing between switching devices back on after a maintenance shutdown, such as allowing a few minutes for your return pump to restore water levels in sump and aquarium before switching on the skimmer, wave pumps and dosers.
User friendly features
Precision geared valve for positive flow regulation.
Quick release pump holder for ease of maintenance
1-meter valved waste drainage hose.
3 set-up options with skim regulator facing either the left side, right side or back.
Built-in manual neck cleaner.
Specification
56 cm / 22”
HeightPSK DC-1200
Sicce pump
750/195
Air flow (Lph/Gph)
1500/265
Water flow (Lph/Gph)
18-20 cm / 7-8”
Recommended water height25 W
Power consumption
Ratings
SPS (L / Gal)
600 / 160
Mixed Reef (L / Gal)
1200 / 320
Fish Only (L / Gal)
1800 / 500
ReefWave Pump
ReefWave
Silent - Smart - Powerful
Based on Gyre patented, cross-flow technology, ReefWave smart pumps are nearly silent, smart, powerful and easy to maintain. They provide an optimal REEF-SPEC water flow for corals in a wide range of reefscapes, regardless of their position in your aquarium.The combination of an advanced, smooth running and energy efficient sine-wave motor drive, with superior vibration damping mounts and dual bearings on all models, make ReefWave a nearly silent pulsing wave pump. You can control each ReefWave pump locally through its own dedicated controller or remotely via the built-in Wi-Fi that connects easily to Red Sea’s ReefBeat app.
Features
- Cross-flow technology wave pump for a gentle, evenly distributed flow
- Silent and energy efficient Sine-Wave DC control motor
- 5 programmable wave patterns with unique Forward/Reverse/Alternating flow modes
- Easy assembly/disassembly for maintenance
- Dedicated Wi-Fi controller for each pump
- Synchronize multiple pumps of different sizes
- ReefBeat App for easy set-up, operation, monitoring and notifications
ReefBeat app
- One interface for all of Red Sea’s smart devices.
- Easy set-up and operation.
- On-line monitoring and notifications.
ReefWave 45 specifications
Actual maximum flow rate - 15000 LPH
Power consumption - 8-45 WATT
Recommended aquarium size - 60-200 CM
Cable length - 3m
Max glass thickness - 20mm
Actual maximum flow rate - 15000 LPH
Power consumption - 8-45 WATT
Recommended aquarium size - 60-200 CM
Cable length - 3m
Max glass thickness - 20mm
ReefMat Filter Roller
ReefMat
Smart - Plug&Play - Efficient
The ReefMat is a plug & play, fully automated, smart fleece roller filter that keeps your aquarium water crystal clear for weeks at a time. Designed with the hobbyist in mind, the ReefMat features an easy fleece-mat replacement system that allows you to switch rolls without having to remove the filter from the sump or turn off the pumps.ReefMat includes a fail-proof solid-state level sensor and an unprecedented smart drive unit that controls and monitors the exact length of fleece-mat that is used. ReefMat is Wi-Fi connected to Red Sea’s ReefBeat smart aquarium eco-system and will notify you if the fleece-mat gets torn or runs out, gives you a head’s up before it needs replacing, and even provide you with a daily usage log.
Features
- Plug & Play installation with multiple sump setup options.
- Easy fleece-mat replacement system.
- Efficient, high-flow, skimmer friendly, 50 g/m2, non-woven polyester fleece-mat rolls.
- Smart drive unit – connected to the ReefBeat ecosystem.
- Solid-State internal and external water level sensors (no moving parts).
- Integrated media basket for additional chemical filtration.
- Kink-resistant, corrugated inlet hose with a USA/Metric PVC connector.
Specifications:
- Max. flow capacity: 12,000 litres per hour
- Fleece-roll width: 17cm
- Fleece-roll length: 35m
- Unit dimensions: 27 x 30 x 48 cm
- Media basket: 700ml
ReefBeat App
One interface for all of Red Seas smart devices
Easy set-up and operation
On-line monitoring and notifications
Additional app features
Peace of Mind
Timely notifications should the fleece-mat get torn, stuck or run out. In addition to the notifications the ReefMat smart-drive will automatically shut off the motor until the roll is unblocked or replaced.
End of Roll Monitor
Based on the average daily usage, ReefBeat lets you know your preferred number of days before the roll is due to end.
Performance Log
Continuously monitor performance with a detailed hourly and daily fleece-mat dispensing record for the current roll and overall stats for previous rolls.
Customized Dispensing
The length of fleece mat dispensed can be customised allowing for optimal system performance
Mounting and Installation
The ReefMat comes fully assembled, straight out of the box. For ease of operation, it is designed to hang on the front wall of the sump however it also has optional legs for a free-standing installation.
Both the Drive-unit and inlet hose can be positioned either side of the ReefMat, as best suits each installation.
Kink-resistant, corrugated (32mm/1.25" ID) inlet hose with a PVC universal connector (suitable for both metric and USA piping) are provided to easily connect the ReefMat directly to the aquarium downpipe or dedicated feed pump.
ReefATO
Exceptionally reliable and smart ATO, temperature monitor and leak detectorSmart, Safe & Quiet. The ReefATO+ is designed to maintain a stable salinity and water volume in a reef aquarium by automatically replenishing the water lost due to evaporation.
This is not just a top-up! Fully control via the ReefBeat App provides complete peace of mind with alerts via your mobile device when you are around your aquarium. Complete with an installation kit that includes tube holders, clips and non-return valves you could ever need, the ATO+ proves every last detail has been thought about, something we have come to expect from Red Sea in recent times!
In addition, the ReefATO+ provides two other critical aquarium health indicators: a fully featured online digital temperature monitor and a leak detector.
ATO+ Sensor
Slim-line, multi-input, titanium probe, solid state (EC technology) water level sensor, with a built-in digital thermometer accurate to 0.1 degrees.
ATO Pump
Quiet, variable flow, serviceable ATO pump (6-10w). Diameter 4.5cm, max flow 300lph/75 gph with a max head height of 2.5 meters.
Leak Detector
Highly Sensitive, REEF-SPEC, titanium probe leak detector for RO & saltwater. Triggers notifications via the ReefBeat App and features an audible alarm.
Smart Controller
The microprocessor monitors and reliably controls all of the components and connects them to the Reef Beat eco-system.
Slide Out Control Panel
Designed with hobbyist needs in mind, Red Sea’s new slide-out Control Panel helps you to get the most out of your cabinet space by placing your dosers, controllers and other devices in one easily accessible place.The Control Panel is designed to fit either side of your cabinet, and is made of marine-spec laminated plywood with quick-release stainless steel soft-close sliders, allowing for easy mounting and access to all your equipment.
Features & specs
- Marine-spec, 2 cm (0.8”) thick, black laminated plywood panel.
- Mounts on both left or right sides.
- Quick-release stainless steel soft-close sliders.
- Mounting brackets provide 3 cm (1.2?) clearance for hinges.
/
